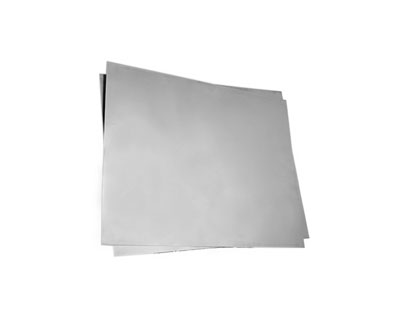

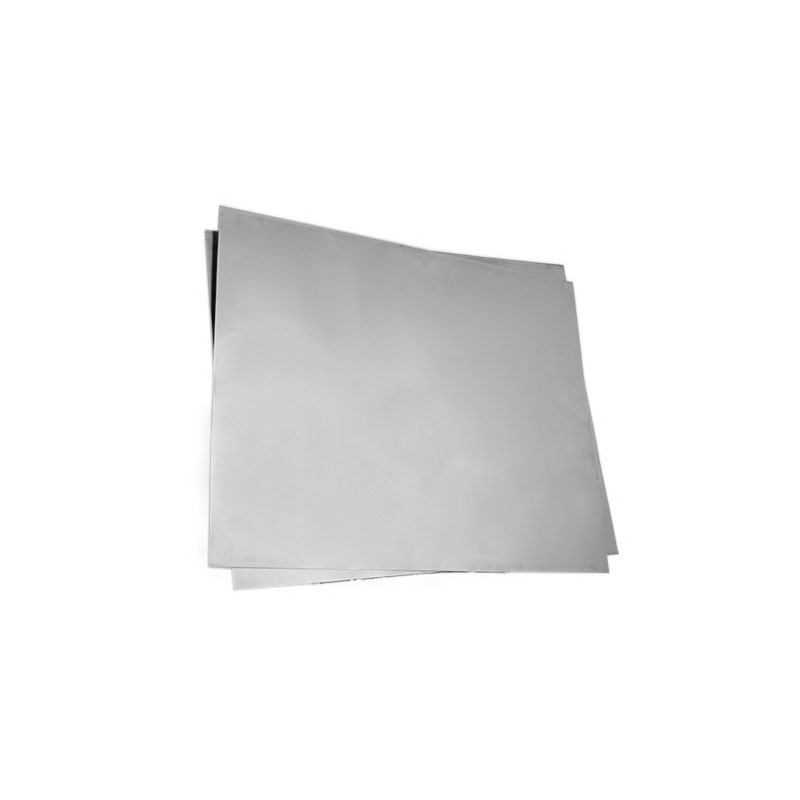

Niobium Sheet

Niobium is a shiny metal gray, have paramagnetism, belonging to 5 families of the periodic table. The ductility of high purity niobium metal is higher, but with the increase of the content of impurities and harden. It's the most outer shell configuration and other five elements are very different. The same phenomenon also appears in before and after the nail, rhodium and palladium element.

Get Niobium Sheet Price

Specification of Niobium Sheet

Thickness

The allowable deviation thickness

Width

The allowable deviation Width

Length

Width>120~300

Width>300

0.1~0.2

±0.015

±0.02

>300~420

±2.0

>100

>0.2~0.3

±0.02

±0.03

>200~420

±2.0

>100

>0.3~0.5

±0.03

±0.04

>200~420

±2.0

50~3000

>0.5~0.8

±0.04

±0.06

>200~420

±2.0(±5.0)

50~3000

>0.8~1.0

±0.06

±0.08

>200~420

±2.0(±5.0)

50~3000

>1.0~1.5

±0.08

±0.10

>200~420

±3.0(±5.0)

50~3000

>1.5~2.0

±0.12

±0.14

>200~420

±3.0(±5.0)

50~3000

>2.0~3.0

±0.16

±0.18

>200~420

±5.0

50~3000

>3.0~4.0

±0.18

±0.20

>200~420

±5.0

50~3000

>4.0~6.0

±0.20

±0.24

>200~420

±5.0

50~3000


Chemical composition  %


Nb

Fe

Si

Ni

W

Mo

Ti

Ta

O

C

H

N

Nb1

Remainder

0.004

0.002

0.002

0.004

0.004

0.002

0.07

0.015

0.005

0.0015

0.003

Nb2

Remainder

0.02

0.02

0.005

0.02

0.02

0.005

0.15

0.03

0.01

0.0015

0.01


Application of Niobium Sheet

  • Electronic industry, Chemistry, Electronical, Pharmaceutical industry.

  • Steel, Ceramics, Electronics, nuclear energy industries and superconductor technology.

Application of Niobium Sheet

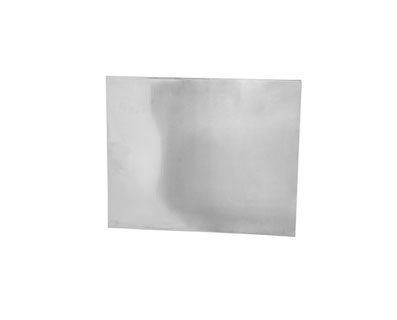

Production Process of Niobium Sheet

Production Process of Niobium Sheet

Forming, sintering, drape forging, machining.

Features of Niobium Sheet

Features of Niobium Sheet

  • 01.

    Low Density and High Specificate Strength

  • 02.

    Excellent Corrosion Resistance

  • 03.

    Good resistance to effect of heat
