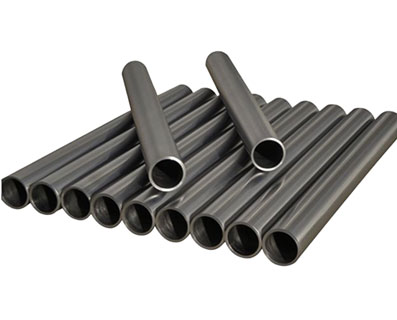

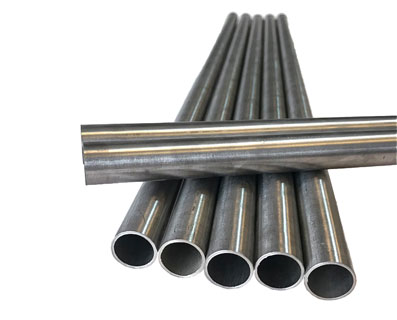

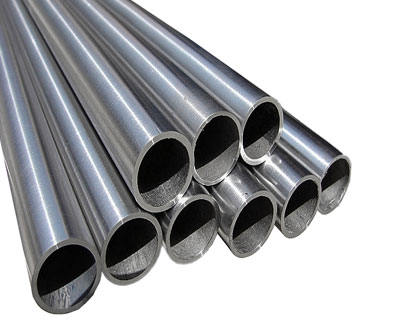

Niobium Tube

Niobium and niobium alloy tubes, rods and wires are widely used in chemistry, electronics, aviation and aerospace because of their high melting point, corrosion resistance and good cold working performance.

Get Niobium Tube Price

Specification of Niobium Tube

Niobium and Niobium Alloys Tube/Pipe Chemical Composition

Element

Type1 (Reactor Grade Unalloyed Nb)  R04200

Type2 (Commercial Grade Unalloyed Nb) R04210

Type3 (Reactor Grade Nb-1%Zr)         R04251

Type4 (Commercial Grade Nb-1%Zr)  R04261

Max Weight % (Except Where Otherwise Specified)

C

0.01

0.01

0.01

0.01

N

0.01

0.01

0.01

0.01

O

0.015

0.025

0.015

0.025

H

0.0015

0.0015

0.0015

0.0015

Zr

0.02

0.02

0.8-1.2

0.8-1.2

Ta

0.1

0.3

0.1

0.5

Fe

0.005

0.01

0.005

0.01

Si

0.005

0.005

0.005

0.005

W

0.03

0.05

0.03

0.05

Ni

0.005

0.005

0.005

0.005

Mo

0.010

0.020

0.010

0.050

Hf

0.02

0.02

0.02

0.02

Ti

0.02

0.03

0.02

0.03

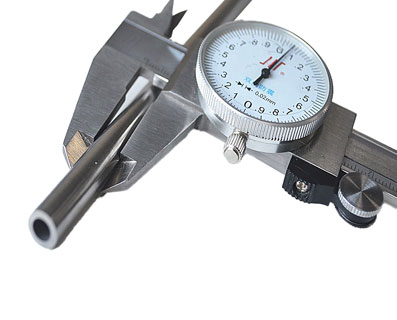

Niobium and Niobium Alloys Tube Dimension and Tolerance

Outer Diameter (D)/in (mm)

Outer Diameter Tolerance/in (mm)

Inner Diameter Tolerance/in (mm)

Wall Thickness Tolerance/%

0.187 < D < 0.625 (4.7 < D < 15.9)

± 0.004 (0.10)

± 0.004 (0.10)

10

0.625 < D < 1.000 (15.9 < D < 25.4)

± 0.005 (0.13)

± 0.005 (0.13)

10

1.000 < D < 2.000(25.4 < D < 50.8)

± 0.0075 (0.19)

± 0.0075 (0.19)

10

2.000 < D < 3.000(50.8 < D < 76.2)

± 0.010 (0.25)

± 0.010 (0.25)

10

3.000 < D < 4.000(76.2 < D < 101.6)

± 0.0125 (0.32)

± 0.0125 (0.32)

10

The tolerance can be adjusted based on customer's request.


Application of Niobium Tube

Niobium tube / pipe is used in industrial, electric light source, heating and heat shield electric vacuum equipment. High purity niobium tube has higher requirements for purity and uniformity, it can be used as the cavity material of the superconducting linear collider. The biggest demand for niobium tube and pipe is for steel enterprises, and the materials are mainly used in acid washing and immersion tank, jet pump and its system pipe fittings.

Application of Niobium Tube
Production Process of Niobium Tube

Production Process of Niobium Tube

Production process: raw materials - vacuum electron beam melting, forging - rolling - niobium tube products.

Features of Niobium Tube

Features of Niobium Tube

  • 01.

    Niobium has good corrosion resistance and high temperature strength. It can be used as the structural material of atomic reactor and the cladding material of nuclear fuel, and can also be used as the additive of nuclear fuel.

  • 02.

    Niobium and niobium alloys can maintain high strength and good machining performance at high temperature, and can support thin plates and parts with complex shapes. They can be used as preferred thermal protection materials and structural materials in some hypersonic aircraft, space vehicles, missiles and supersonic low-altitude rockets.

  • 03.

    Niobium has a high superconducting transition temperature. Compounds and alloys of niobium can be used as superconducting materials. It has good thermionic emission properties and can be used as aspirators for vacuum tubes and low pressure distillators.
