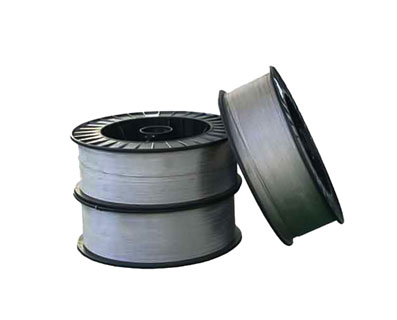

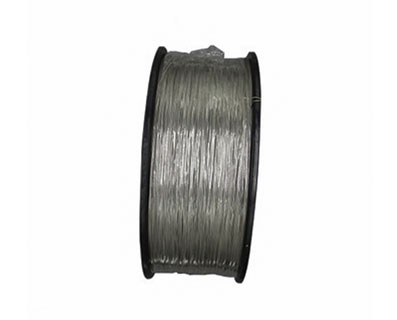

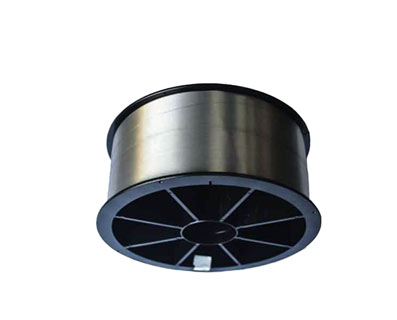

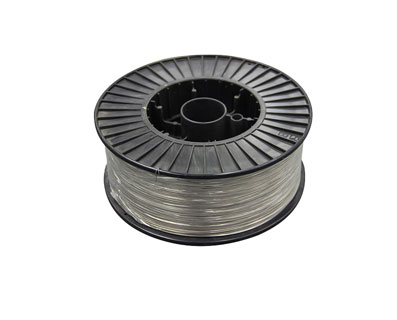

Niobium wire is cold worked from the ingots to the final diameter. The typical working process is forging, rolling, swaging, and drawing. Niobium wire is 0.010 to 0.15 in. in diameter furnished in coils or on spools or reels, and the purity can be up to99.95%. For the larger diameters, please refer to the Niobium Rod.
Chemistry % | |||||||||||||
Designation | Chief component | Impurities maximum | |||||||||||
Nb | Fe | Si | Ni | W | Mo | Ti | Ta | O | C | H | N | ||
Nb1 | Remainder | 0.004 | 0.003 | 0.002 | 0.004 | 0.004 | 0.002 | 0.07 | 0.015 | 0.004 | 0.0015 | 0.002 | |
Nb2 | Remainder | 0.02 | 0.02 | 0.005 | 0.02 | 0.02 | 0.005 | 0.15 | 0.03 | 0.01 | 0.0015 | 0.01 | |
Dia | Tolerancet | Roundness |
0.2-0.5 | ±0.007 | 0.005 |
0.5-1.0 | ±0.01 | 0.01 |
1.0-1.5 | ±0.02 | 0.02 |
1.5-3.0 | ±0.03 | 0.03 |
Solid electrolytic capacitor
Radar,aerospace, medical, biomedical, electronic,
Aircraft
Electronic computer
Heat exchanger, Heater, Evaporaator
Part of reactive tank
Electronic transmitting tube
Part of high temprature electronic tube
Bone plate for medical, bolt for medical, suture needles
Production process: niobium materials - vacuum electron beam melting, forging - polishing - inspection - shipments.
Low thermal expansion;
High density; High strength;
Good corrosion resistance
Low resistivity;
Manufactured based on customers' requirements
